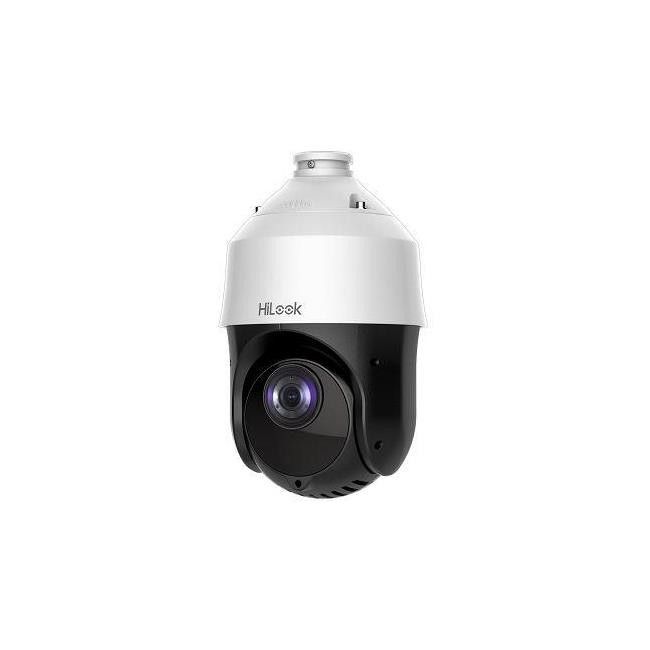

Ürün Adı: Hilook PTZ-N4215I-DE F 2Mp 15x PTZ IR Speed Dome Kamera

Ürün Bilgisi

IP Kamera

Image Sensor: 1/2.8" Progressive Scan CMOS

Effective Pixels: 1920(H)x1080(V)

Signal System: PAL/NTSC

Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001 Lux @(F1.6, AGC ON)

0 Lux with IR

White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:Auto/Manual

BLC:ON/OFF

HLC:Support

Smart defog:Support

WDR:120dB

Shutter Time:1/1 s to 1/30,000 s

Day& Night: ICR

Digital Zoom:16×

Privacy Masking: 24 privacy masks programmable

Auto Focus: Auto / Semi-automatic / Manual

Lens Focal Length: 5 mm to 75 mm, 15× optical

Zoom Speed:Approx. 2.4 s (optical lens, wide-tele)

Angle of View:

Horizontal field of view: 53.8° to 4.0° (wide-tele)

Vertical field of view: 31.9° to 2.3° (wide-tele)

Diagonal field of view: 60.4° to 4.6°(wide-tele)

Minimum Working Distance:10 mm to 1500 mm (wide-tele)

Aperture Range: F1.6 to F3.0

Pan & Tilt

Pan Speed: Configurable, from 0.1°/s to 80°/s

Preset Speed: 80°/s

Tilt Range: -15°-90° (Auto Flip )

Tilt Speed: Configurable, from 0.1°/s to 80°/s

Preset Speed: 80°/s

Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:300

Patrol: 8 patrols, up to 32 presets for each patrol

Pattern:4 pattern scans, record time over 10 minutes for each scan

Power-off Memory: Support

Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display: ON/OFF

Infrared IR irradiation distance:100m

IR irradiation angle: Adjustable by zoom

Network

Ethernet:10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)

Max.Image Resolution:1920×1080

Main Stream:

50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)

60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)

Sub Stream:

50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)

60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

ROI encoding: Support 4 areas with adjustable levels

Protocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users:Up to 20 users

Three-Stream: Support

Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

User/Host Level: Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures:

User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

Menu Language: English

Power Supply: 12 VDC &POE (802.3at,class4)

Power Consumption:Max.:18 W (IR Max.6 W)

Working Temperature/Humidity:

Working Temperature: -30°C to 65°C (-22°F to 149°F)

Working Humidity: ≤ 90%

Protection Level: IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Dimensions:Φ 165.9 mm × 290 mm (Φ 6.53" × 11.42")

Weight (approx.):Approx. 2 kg (4.41 lb)
